Microsoft Excel connector

OAuth 2.0Files & DocumentsAnalytics

Connect to Microsoft Excel. Access, read, and modify spreadsheets stored in OneDrive or SharePoint through Microsoft Graph API.

Microsoft Excel connector

  1. Install the SDK

    Section titled “Install the SDK”
    Terminal window
    npm install @scalekit-sdk/node

    Full SDK reference: Node.js | Python

  2. Set your credentials

    Section titled “Set your credentials”

    Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

    .env
    SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
    SCALEKIT_CLIENT_ID=<your-client-id>
    SCALEKIT_CLIENT_SECRET=<your-client-secret>

  3. Set up the connector

    Section titled “Set up the connector”

    Register your Microsoft Excel credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

    Dashboard setup steps

    Register your Scalekit environment with the Microsoft Excel connector so Scalekit handles the authentication flow and token lifecycle for you. The connection name you create will be used to identify and invoke the connection programmatically. Then complete the configuration in your application as follows:

    1. Set up auth redirects

      • In Scalekit dashboard, go to AgentKit > Connections > Create Connection. Find Excel and click Create. Copy the redirect URI. It will look like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback.

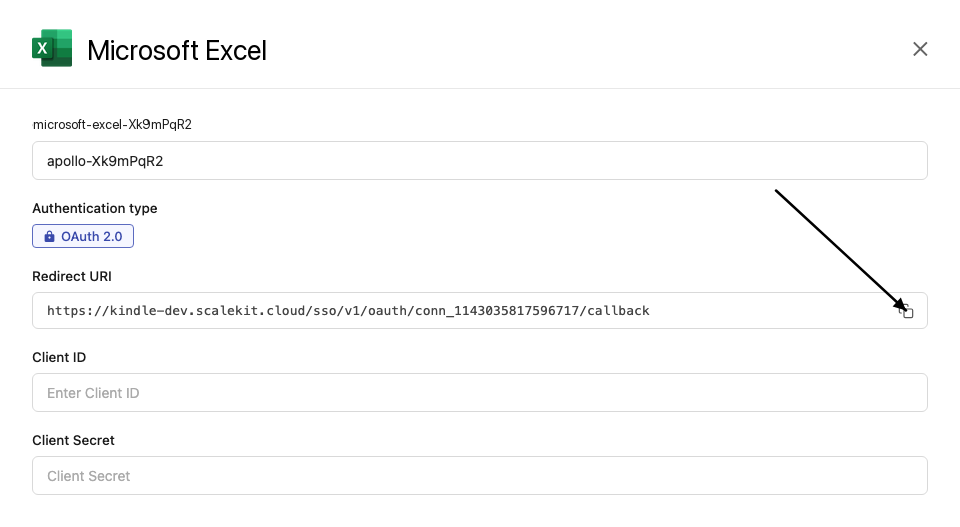

        Copy redirect URI from Scalekit dashboard

      • Sign into portal.azure.com and go to Microsoft Entra ID → App registrations → New registration.

      • Enter a name for your app.

      • Under Supported account types, select Accounts in any organizational directory (Any Azure AD directory - Multitenant) and personal Microsoft accounts.

      • Under Redirect URI, select Web and paste the redirect URI from step 1. Click Register.

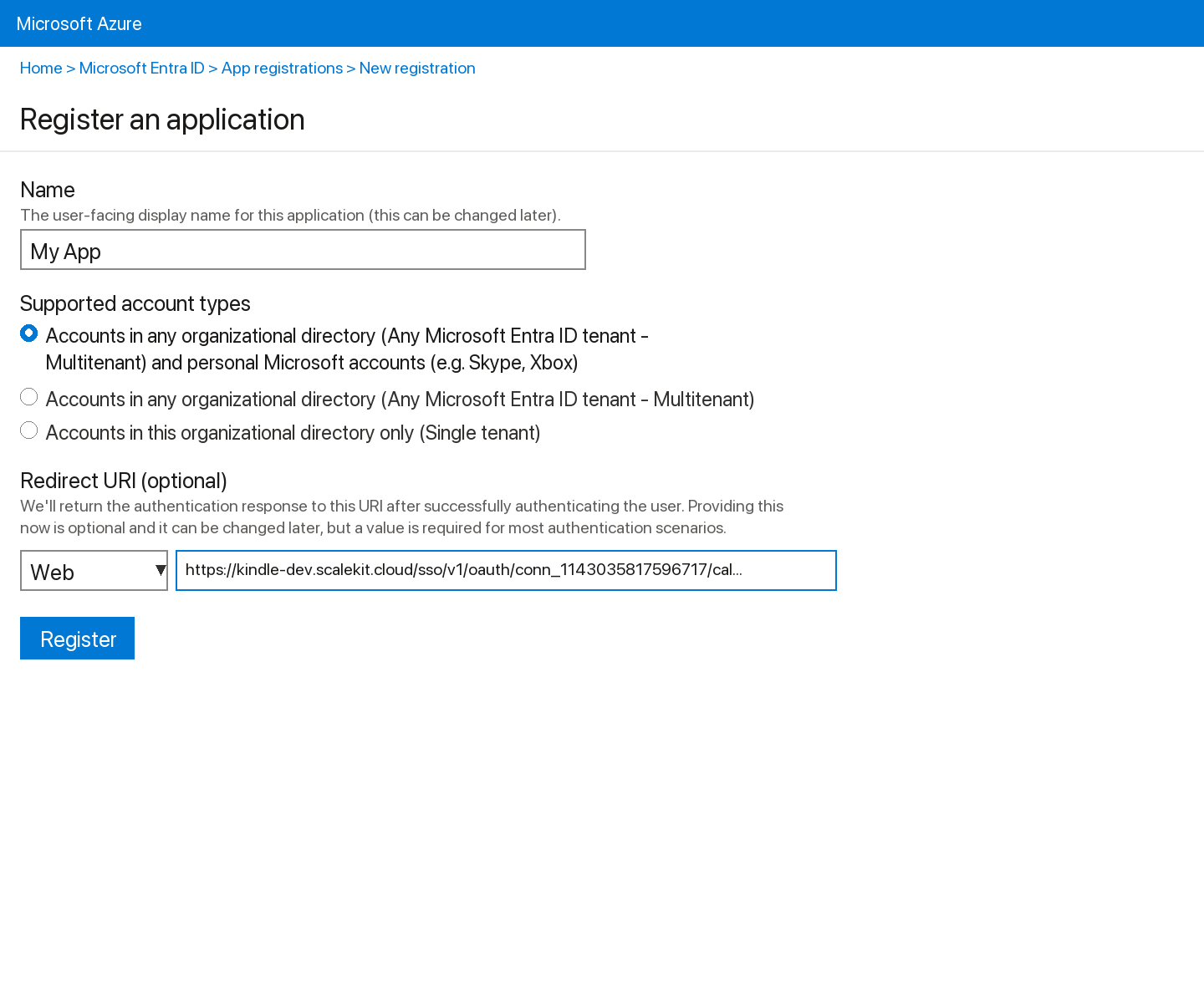

        Register an application in Azure portal

    2. Get your client credentials

      • Go to Certificates & secrets → New client secret, set an expiry, and click Add. Copy the Value immediately.

      • From the Overview page, copy the Application (client) ID.

    3. Add credentials in Scalekit

      • In Scalekit dashboard, go to AgentKit > Connections and open the connection you created.

      • Enter your credentials:

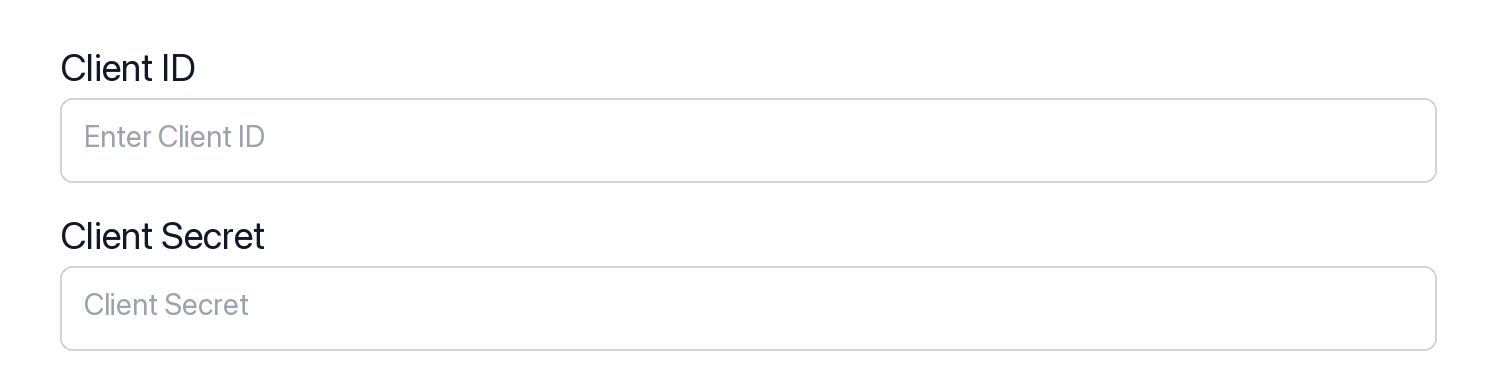

        Add credentials in Scalekit dashboard

      • Click Save.

  4. Authorize and make your first call

    Section titled “Authorize and make your first call”
    quickstart.ts
    import { ScalekitClient } from '@scalekit-sdk/node'
    import 'dotenv/config'


    const scalekit = new ScalekitClient(
      process.env.SCALEKIT_ENV_URL,
      process.env.SCALEKIT_CLIENT_ID,
      process.env.SCALEKIT_CLIENT_SECRET,
    )
    const actions = scalekit.actions


    const connector = 'microsoftexcel'
    const identifier = 'user_123'


    // Generate an authorization link for the user
    const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
    console.log('Authorize Microsoft Excel:', link)
    process.stdout.write('Press Enter after authorizing...')
    await new Promise(r => process.stdin.once('data', r))


    // Make your first call
    const result = await actions.executeTool({
      connector,
      identifier,
      toolName: 'microsoftexcel_list_comments',
      toolInput: { item_id: 'YOUR_ITEM_ID' },
    })
    console.log(result)

What you can do

Section titled “What you can do”

Connect this agent connector to let your agent:

  • Update worksheet, table, range — Update properties of an existing worksheet in an Excel workbook stored in OneDrive
  • Range unmerge, sort, merge — Unmerge a previously merged cell range in an Excel worksheet stored in OneDrive
  • Table sort, filter — Apply a sort to an Excel table stored in OneDrive
  • Worksheet protect — Apply protection to a worksheet in an Excel workbook stored in OneDrive
  • List worksheets, tables, table rows — List all worksheets in an Excel workbook stored in OneDrive
  • Get worksheet, table, range — Retrieve the properties of a specific worksheet in an Excel workbook stored in OneDrive

Common workflows

Section titled “Common workflows”
Proxy API call
// Make a request via Scalekit proxy
const result = await actions.request({
  connectionName: 'microsoftexcel',
  identifier: 'user_123',
  path: '/v1.0/me/drive/root/children',
  method: 'GET',
});
console.log(result);
Execute a tool
const result = await actions.executeTool({
  connector: 'microsoftexcel',
  identifier: 'user_123',
  toolName: 'microsoftexcel_list',
  toolInput: {},
});
console.log(result);

Tool list

Section titled “Tool list”

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

microsoftexcel_add_table_column#Add a new column to an existing Excel table in OneDrive. Optionally specify the column name, its zero-based insertion index (null = append at end), and initial cell values as a 2D array (first row is the header). Returns the created column object.6 params

Add a new column to an existing Excel table in OneDrive. Optionally specify the column name, its zero-based insertion index (null = append at end), and initial cell values as a 2D array (first row is the header). Returns the created column object.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredName or ID of the table to add the column to. Example: 'Table1' or the GUID assigned by Excel.
indexintegeroptionalZero-based index position at which to insert the column. Null or omitted means append the column at the right end of the table. Example: 0 inserts as the first column.
namestringoptionalDisplay name for the new column header. If omitted, Excel auto-generates a name (e.g., 'Column1'). Example: 'Revenue'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
valuesarrayoptional2D array of initial cell values for the column, including the header row in the first element. Example: [["Header"],["row1val"],["row2val"]]. Each inner array is one row. If omitted, the column is created empty.
microsoftexcel_add_table_row#Add a new row to an Excel table in a workbook stored in OneDrive. Provide a 2D array of values (one inner array per row to insert). Optionally specify an index to insert the row at a specific position; omit index to append to the end of the table.5 params

Add a new row to an Excel table in a workbook stored in OneDrive. Provide a 2D array of values (one inner array per row to insert). Optionally specify an index to insert the row at a specific position; omit index to append to the end of the table.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredTable name or numeric ID to add a row to. Example: 'Table1' or '1'.
valuesarrayrequired2D array of values to insert as a new row. Each inner array represents one row; each element is a cell value (string, number, boolean, or null). The number of elements in each inner array must match the table's column count. Example: [["Alice", 95, true]] inserts one row with three cells.
indexintegeroptionalZero-based index at which to insert the row. If null or omitted, the row is appended to the end of the table. Example: 0 inserts at the top of the table.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_clear_range#Clear the contents, formats, or both from a cell range in an Excel worksheet stored in OneDrive. Use apply_to to control what is cleared: 'All' clears both content and formatting, 'Contents' clears only values and formulas, 'Formats' clears only cell formatting.5 params

Clear the contents, formats, or both from a cell range in an Excel worksheet stored in OneDrive. Use apply_to to control what is cleared: 'All' clears both content and formatting, 'Contents' clears only values and formulas, 'Formats' clears only cell formatting.

NameTypeRequiredDescription
addressstringrequiredCell range address in Excel notation to clear. Examples: 'A1:C10' to clear a multi-cell range, 'B2' to clear a single cell.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the range to clear. Example: 'Sheet1'.
apply_tostringoptionalWhat to clear from the range. Valid values: 'All' (clears both content and formatting, default), 'Contents' (clears only values and formulas), 'Formats' (clears only cell formatting).
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_close_session#Close an active workbook session for an Excel file in OneDrive. Releases server-side resources associated with the session. Pass the session ID returned by the createSession call as session_id.2 params

Close an active workbook session for an Excel file in OneDrive. Releases server-side resources associated with the session. Pass the session ID returned by the createSession call as session_id.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file whose session should be closed. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
session_idstringrequiredWorkbook session ID returned by the createSession call. Sent as the workbook-session-id request header to identify which session to close. Example: 'cluster=SN2&session=...'.
microsoftexcel_create_chart#Create a new chart in an Excel worksheet stored in OneDrive. Specify the chart type (e.g., ColumnClustered, Line, Pie), the source data range address (e.g., 'A1:B10'), and optionally how series are arranged (Auto, Columns, Rows). Returns the created chart object including its ID.6 params

Create a new chart in an Excel worksheet stored in OneDrive. Specify the chart type (e.g., ColumnClustered, Line, Pie), the source data range address (e.g., 'A1:B10'), and optionally how series are arranged (Auto, Columns, Rows). Returns the created chart object including its ID.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
source_datastringrequiredCell range address providing the chart source data in Excel notation. Example: 'A1:B10' uses columns A and B, rows 1–10 as the chart data.
worksheet_idstringrequiredWorksheet name or GUID in which to create the chart. Example: 'Sheet1'.
chart_typestringoptionalType of chart to create. Valid values: ColumnClustered, ColumnStacked, ColumnStacked100, BarClustered, BarStacked, BarStacked100, Line, LineStacked, LineMarkers, Pie, Doughnut, Scatter, Area, Radar, XYScatter. Default is 'ColumnClustered'.
series_bystringoptionalHow data series are determined from the source range. Valid values: 'Auto' (Excel decides), 'Columns' (each column is a series), 'Rows' (each row is a series). Default is 'Auto'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_create_session#Create a workbook session for an Excel file in OneDrive. Returns a session ID that can be passed as the workbook-session-id header in subsequent Excel API calls to maintain state and improve performance. Requires the OneDrive item ID of the .xlsx file.2 params

Create a workbook session for an Excel file in OneDrive. Returns a session ID that can be passed as the workbook-session-id header in subsequent Excel API calls to maintain state and improve performance. Requires the OneDrive item ID of the .xlsx file.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file to open a session for. Obtain this from the OneDrive file listing or drive item API. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
persist_changesbooleanoptionalWhether to persist changes made during the session to the workbook. Set to true (default) to save changes; set to false for a read-only transient session that does not commit edits.
microsoftexcel_create_table#Create a new Excel table from a cell range in a worksheet stored in OneDrive. Specify the address of the range (e.g., 'A1:D10') and whether the first row contains headers. Returns the created table object including its assigned ID and name.5 params

Create a new Excel table from a cell range in a worksheet stored in OneDrive. Specify the address of the range (e.g., 'A1:D10') and whether the first row contains headers. Returns the created table object including its assigned ID and name.

NameTypeRequiredDescription
addressstringrequiredCell range address for the new table in Excel notation. Example: 'A1:D10' creates a table spanning columns A–D and rows 1–10.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID in which to create the table. Example: 'Sheet1'.
has_headersbooleanoptionalWhether the first row of the range contains column headers. When true (default), the first row becomes the header row of the table. When false, Excel auto-generates header names.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_create_worksheet#Add a new worksheet to an Excel workbook stored in OneDrive. Specify the sheet name. Returns the newly created worksheet object including its ID, name, position, and visibility.3 params

Add a new worksheet to an Excel workbook stored in OneDrive. Specify the sheet name. Returns the newly created worksheet object including its ID, name, position, and visibility.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file to add the worksheet to. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
namestringrequiredName for the new worksheet tab. Must be unique within the workbook and cannot exceed 31 characters. Example: 'Q1 Sales'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_delete_chart#Delete a chart from an Excel worksheet stored in OneDrive. This permanently removes the chart from the worksheet. Requires the OneDrive item ID, worksheet name or GUID, and chart name or GUID.4 params

Delete a chart from an Excel worksheet stored in OneDrive. This permanently removes the chart from the worksheet. Requires the OneDrive item ID, worksheet name or GUID, and chart name or GUID.

NameTypeRequiredDescription
chart_idstringrequiredName or ID of the chart to delete. Example: 'Chart 1' or the GUID assigned by Excel.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the chart to delete. Example: 'Sheet1'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_delete_table#Permanently delete a table from an Excel workbook stored in OneDrive. The underlying cell data is preserved but the table formatting and structure are removed. This action cannot be undone.3 params

Permanently delete a table from an Excel workbook stored in OneDrive. The underlying cell data is preserved but the table formatting and structure are removed. This action cannot be undone.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredTable name or numeric ID to delete. Example: 'Table1' or '1'. This permanently removes the table structure (cell data is kept).
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_delete_table_column#Delete a column from an Excel table by its zero-based index. This permanently removes the column and all its data from the table. Requires the OneDrive item ID, table name or ID, and the column index to delete.4 params

Delete a column from an Excel table by its zero-based index. This permanently removes the column and all its data from the table. Requires the OneDrive item ID, table name or ID, and the column index to delete.

NameTypeRequiredDescription
column_indexintegerrequiredZero-based index of the column to delete within the table. Example: 0 deletes the first column, 2 deletes the third column.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredName or ID of the table containing the column to delete. Example: 'Table1' or the GUID assigned by Excel.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_delete_table_row#Permanently delete a row from an Excel table in a workbook stored in OneDrive by its zero-based row index. All rows below the deleted row shift up by one. This action cannot be undone.4 params

Permanently delete a row from an Excel table in a workbook stored in OneDrive by its zero-based row index. All rows below the deleted row shift up by one. This action cannot be undone.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
row_indexintegerrequiredZero-based index of the row to delete within the table. The header row is not counted; index 0 refers to the first data row. Example: 0 deletes the first data row.
table_idstringrequiredTable name or numeric ID from which to delete the row. Example: 'Table1' or '1'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_delete_worksheet#Permanently delete a worksheet from an Excel workbook stored in OneDrive. This action cannot be undone. The workbook must have at least one remaining visible worksheet after deletion.3 params

Permanently delete a worksheet from an Excel workbook stored in OneDrive. This action cannot be undone. The workbook must have at least one remaining visible worksheet after deletion.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID to delete. Example: 'Sheet1' or '{00000000-0001-0000-0000-000000000000}'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_export_to_pdf#Export an Excel workbook stored in OneDrive to PDF format. Uses the Microsoft Graph OneDrive content endpoint with format=pdf query parameter. Returns the PDF binary content. The response may be a direct 200 with the PDF body or a 302 redirect to a download URL depending on file size.1 param

Export an Excel workbook stored in OneDrive to PDF format. Uses the Microsoft Graph OneDrive content endpoint with format=pdf query parameter. Returns the PDF binary content. The response may be a direct 200 with the PDF body or a 302 redirect to a download URL depending on file size.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file to export. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
microsoftexcel_filter_table#Apply a filter to a column in an Excel table stored in OneDrive. Specify the filter criteria type (e.g., Values, Dynamic, Top, Custom) and the values or criteria to filter by. For 'Values' filtering, provide an array of exact string values to show. The filter is applied in place; no data is returned.6 params

Apply a filter to a column in an Excel table stored in OneDrive. Specify the filter criteria type (e.g., Values, Dynamic, Top, Custom) and the values or criteria to filter by. For 'Values' filtering, provide an array of exact string values to show. The filter is applied in place; no data is returned.

NameTypeRequiredDescription
column_idstringrequiredName or ID of the column within the table on which to apply the filter. Example: 'Status' or the column's integer ID.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredName or ID of the table to filter. Example: 'Table1' or the GUID assigned by Excel.
valuesarrayrequiredArray of string values to filter by when filter_on is 'Values'. Only rows whose cell in this column matches one of these values will be shown. Example: ["Active", "Pending"].
filter_onstringoptionalFilter type that determines how the criteria are applied. Valid values: 'Values' (match exact values), 'Custom' (custom expression), 'CellColor' (cell background color), 'FontColor' (cell font color), 'Dynamic' (dynamic filter such as Above Average), 'Top10' (top or bottom N items), 'Icon' (cell icon). Default is 'Values'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_get_range#Retrieve the values, formulas, format, and address of a cell range in an Excel worksheet stored in OneDrive. Specify the range using standard Excel notation (e.g., 'A1:C10' or 'B2'). Optionally accepts a workbook session ID.4 params

Retrieve the values, formulas, format, and address of a cell range in an Excel worksheet stored in OneDrive. Specify the range using standard Excel notation (e.g., 'A1:C10' or 'B2'). Optionally accepts a workbook session ID.

NameTypeRequiredDescription
addressstringrequiredCell range address in Excel notation to retrieve. Examples: 'A1' for a single cell, 'A1:C10' for a multi-cell range, 'Sheet1!A1:B5' to target a specific sheet within the address.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the range. Example: 'Sheet1' or '{00000000-0001-0000-0000-000000000000}'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_get_table#Retrieve details of a specific table in an Excel workbook stored in OneDrive, including its name, style, column count, and header/total row settings. Accepts either a numeric table ID or the table name.3 params

Retrieve details of a specific table in an Excel workbook stored in OneDrive, including its name, style, column count, and header/total row settings. Accepts either a numeric table ID or the table name.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredTable name or numeric ID to retrieve. Example: 'Table1' or '1'. Both the table name and the workbook-assigned numeric ID are accepted.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_get_worksheet#Retrieve the properties of a specific worksheet in an Excel workbook stored in OneDrive. Use the worksheet name or its GUID as the worksheet_id. Optionally accepts a workbook session ID.3 params

Retrieve the properties of a specific worksheet in an Excel workbook stored in OneDrive. Use the worksheet name or its GUID as the worksheet_id. Optionally accepts a workbook session ID.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredThe worksheet name or GUID to retrieve. Use the sheet tab name (e.g., 'Sheet1') or the worksheet's unique GUID. Example: 'Sheet1' or '{00000000-0001-0000-0000-000000000000}'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_charts#List all charts in an Excel worksheet stored in OneDrive. Returns chart names, IDs, type, dimensions, and position. Supports OData $top for pagination.4 params

List all charts in an Excel worksheet stored in OneDrive. Returns chart names, IDs, type, dimensions, and position. Supports OData $top for pagination.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the charts to list. Example: 'Sheet1'.
$topintegeroptionalMaximum number of charts to return (1–1000). Defaults to server-defined page size.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_comments#List all comments in an Excel workbook stored in OneDrive. Returns comment IDs, author information, content, cell location, and creation date. Supports OData $top for pagination.3 params

List all comments in an Excel workbook stored in OneDrive. Returns comment IDs, author information, content, cell location, and creation date. Supports OData $top for pagination.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
$topintegeroptionalMaximum number of comments to return (1–1000). Defaults to server-defined page size.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_named_items#List all named items (named ranges and constants) in an Excel workbook stored in OneDrive. Returns the name, type, value, and scope for each named item. Supports OData $top for pagination and $select for field projection.4 params

List all named items (named ranges and constants) in an Excel workbook stored in OneDrive. Returns the name, type, value, and scope for each named item. Supports OData $top for pagination and $select for field projection.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
$selectstringoptionalComma-separated list of properties to return for each named item. Example: 'name,type,value' to return only those fields.
$topintegeroptionalMaximum number of named items to return (1–1000). Defaults to server-defined page size.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_table_columns#List all columns in an Excel table in a workbook stored in OneDrive. Returns column objects including their name, index, and values. Supports OData pagination with $top and field selection with $select.5 params

List all columns in an Excel table in a workbook stored in OneDrive. Returns column objects including their name, index, and values. Supports OData pagination with $top and field selection with $select.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredTable name or numeric ID whose columns to list. Example: 'Table1' or '1'.
$selectstringoptionalComma-separated list of properties to return for each column. Example: 'id,name' to return only the column ID and name.
$topintegeroptionalMaximum number of columns to return. Useful for tables with many columns. Example: 10.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_table_rows#List rows in an Excel table stored in OneDrive. Returns an array of row objects, each containing a values array with the cell data. Supports OData pagination with $top and $skip.5 params

List rows in an Excel table stored in OneDrive. Returns an array of row objects, each containing a values array with the cell data. Supports OData pagination with $top and $skip.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredTable name or numeric ID whose rows to list. Example: 'Table1' or '1'.
$skipintegeroptionalNumber of rows to skip for pagination. Use in combination with $top to page through large tables. Example: 20 to skip the first 20 rows.
$topintegeroptionalMaximum number of rows to return. Defaults to server page size. Example: 50 to return up to 50 rows.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_tables#List all tables in an Excel workbook stored in OneDrive. Returns table names, IDs, style, and header/total row settings. Supports OData query options for pagination and field selection.4 params

List all tables in an Excel workbook stored in OneDrive. Returns table names, IDs, style, and header/total row settings. Supports OData query options for pagination and field selection.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
$selectstringoptionalComma-separated list of properties to return. Example: 'id,name,style' to return only those fields for each table.
$topintegeroptionalMaximum number of tables to return (1–1000). Defaults to server-defined page size.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_list_worksheets#List all worksheets in an Excel workbook stored in OneDrive. Supports OData query parameters for field selection and pagination. Optionally accepts a workbook session ID for session-based access.4 params

List all worksheets in an Excel workbook stored in OneDrive. Supports OData query parameters for field selection and pagination. Optionally accepts a workbook session ID for session-based access.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
$selectstringoptionalComma-separated list of properties to return for each worksheet. Example: 'id,name,position,visibility'.
$topintegeroptionalMaximum number of worksheets to return. Example: 10.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header for session-based access. Example: 'cluster=SN2&session=...'.
microsoftexcel_merge_range#Merge a cell range in an Excel worksheet stored in OneDrive. Specify the range address (e.g., 'A1:C3') and optionally set 'across' to true to merge each row separately rather than merging the entire block into one cell.5 params

Merge a cell range in an Excel worksheet stored in OneDrive. Specify the range address (e.g., 'A1:C3') and optionally set 'across' to true to merge each row separately rather than merging the entire block into one cell.

NameTypeRequiredDescription
addressstringrequiredCell range address in Excel notation to merge. Examples: 'A1:C3' for a 3-column by 3-row block, 'B2:D4' for a rectangular range.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the range to merge. Example: 'Sheet1'.
acrossbooleanoptionalWhen true, merges cells in each row of the range separately (row-by-row merge) instead of merging the entire block into a single cell. Defaults to false.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_protect_worksheet#Apply protection to a worksheet in an Excel workbook stored in OneDrive. You can optionally set a password and configure which actions are allowed while the sheet is protected (e.g., allow formatting cells but prevent deleting rows).15 params

Apply protection to a worksheet in an Excel workbook stored in OneDrive. You can optionally set a password and configure which actions are allowed while the sheet is protected (e.g., allow formatting cells but prevent deleting rows).

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID to protect. Example: 'Sheet1' or '{00000000-0001-0000-0000-000000000000}'.
allow_auto_filterbooleanoptionalWhether to allow AutoFilter operations while the worksheet is protected. Default is false.
allow_delete_columnsbooleanoptionalWhether to allow deleting columns while the worksheet is protected. Default is false.
allow_delete_rowsbooleanoptionalWhether to allow deleting rows while the worksheet is protected. Default is false.
allow_format_cellsbooleanoptionalWhether to allow formatting cells while the worksheet is protected. Default is false.
allow_format_columnsbooleanoptionalWhether to allow formatting columns while the worksheet is protected. Default is false.
allow_format_rowsbooleanoptionalWhether to allow formatting rows while the worksheet is protected. Default is false.
allow_insert_columnsbooleanoptionalWhether to allow inserting columns while the worksheet is protected. Default is false.
allow_insert_hyperlinksbooleanoptionalWhether to allow inserting hyperlinks while the worksheet is protected. Default is false.
allow_insert_rowsbooleanoptionalWhether to allow inserting rows while the worksheet is protected. Default is false.
allow_pivot_tablesbooleanoptionalWhether to allow PivotTable operations while the worksheet is protected. Default is false.
allow_sortbooleanoptionalWhether to allow sorting while the worksheet is protected. Default is false.
passwordstringoptionalOptional password to protect the worksheet. If set, users must enter this password to unprotect the sheet. Example: 'MySecretPass123'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_sort_range#Apply a sort to a cell range in an Excel worksheet stored in OneDrive. Specify one or more sort fields defining which column index to sort by and whether to sort ascending or descending. Optionally control case sensitivity and whether the range has a header row.7 params

Apply a sort to a cell range in an Excel worksheet stored in OneDrive. Specify one or more sort fields defining which column index to sort by and whether to sort ascending or descending. Optionally control case sensitivity and whether the range has a header row.

NameTypeRequiredDescription
addressstringrequiredCell range address in Excel notation to sort. Example: 'A1:D20' to sort a 4-column, 20-row range.
fieldsarrayrequiredArray of sort field objects defining the sort criteria. Each object must have a 'key' (zero-based column index within the range) and optionally 'ascending' (bool, default true) and 'sortOn' (e.g., 'Value', 'CellColor', 'FontColor', 'Icon'). Example: [{"key": 0, "ascending": true, "sortOn": "Value"}].
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the range to sort. Example: 'Sheet1'.
has_headersbooleanoptionalWhether the range has a header row that should not be sorted. Default is true — the first row is treated as a header and excluded from sorting.
match_casebooleanoptionalWhether the sort is case-sensitive. Default is false (case-insensitive).
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_sort_table#Apply a sort to an Excel table stored in OneDrive. Provide one or more sort field objects specifying the zero-based column key within the table, sort direction (ascending/descending), and sort basis (Value, CellColor, FontColor, Icon). Optionally control case sensitivity. The sort is applied in place; no data is returned.5 params

Apply a sort to an Excel table stored in OneDrive. Provide one or more sort field objects specifying the zero-based column key within the table, sort direction (ascending/descending), and sort basis (Value, CellColor, FontColor, Icon). Optionally control case sensitivity. The sort is applied in place; no data is returned.

NameTypeRequiredDescription
fieldsarrayrequiredArray of sort field objects defining the sort criteria. Each object must include 'key' (zero-based column index within the table). Optionally include 'ascending' (bool, default true) and 'sortOn' (e.g., 'Value', 'CellColor', 'FontColor', 'Icon'). Example: [{"key": 0, "ascending": true, "sortOn": "Value"}].
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredName or ID of the table to sort. Example: 'Table1' or the GUID assigned by Excel.
match_casebooleanoptionalWhether the sort is case-sensitive. Default is false (case-insensitive). Example: set to true to distinguish 'Apple' from 'apple'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_unmerge_range#Unmerge a previously merged cell range in an Excel worksheet stored in OneDrive. Specify the range address to split any merged cells back into individual cells.4 params

Unmerge a previously merged cell range in an Excel worksheet stored in OneDrive. Specify the range address to split any merged cells back into individual cells.

NameTypeRequiredDescription
addressstringrequiredCell range address in Excel notation to unmerge. Example: 'A1:C3' to unmerge a block that was previously merged.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the range to unmerge. Example: 'Sheet1'.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_update_chart#Update properties of an existing chart in an Excel worksheet stored in OneDrive. You can update the chart title text, dimensions (height, width in points), and position (left, top offsets in points). Only fields provided will be updated. Returns the updated chart object.9 params

Update properties of an existing chart in an Excel worksheet stored in OneDrive. You can update the chart title text, dimensions (height, width in points), and position (left, top offsets in points). Only fields provided will be updated. Returns the updated chart object.

NameTypeRequiredDescription
chart_idstringrequiredName or ID of the chart to update. Example: 'Chart 1' or the GUID assigned by Excel.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID containing the chart. Example: 'Sheet1'.
heightintegeroptionalHeight of the chart in points. Example: 300 sets the chart height to 300 points.
leftintegeroptionalLeft offset of the chart from the worksheet origin in points. Example: 0 positions the chart at the left edge.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
titlestringoptionalNew text for the chart title. Example: 'Monthly Revenue'. This wraps to the Graph API shape {"title":{"text":"..."}}.
topintegeroptionalTop offset of the chart from the worksheet origin in points. Example: 0 positions the chart at the top edge.
widthintegeroptionalWidth of the chart in points. Example: 400 sets the chart width to 400 points.
microsoftexcel_update_range#Write values, formulas, or number formats to a cell range in an Excel worksheet stored in OneDrive. Provide a 2D array of values matching the dimensions of the target range. Optionally set formulas and number formats for cells.7 params

Write values, formulas, or number formats to a cell range in an Excel worksheet stored in OneDrive. Provide a 2D array of values matching the dimensions of the target range. Optionally set formulas and number formats for cells.

NameTypeRequiredDescription
addressstringrequiredCell range address in Excel notation to update. Must match the dimensions of the values array. Examples: 'A1:C2' for a 2-row by 3-column range, 'B5' for a single cell.
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
valuesarrayrequired2D array of cell values to write. Each inner array represents a row; each element is a cell value (string, number, boolean, or null). Example: [["Name", "Score"], ["Alice", 95], ["Bob", 87]].
worksheet_idstringrequiredWorksheet name or GUID containing the range to update. Example: 'Sheet1'.
formulasarrayoptional2D array of formula strings to write. Each inner array represents a row; each element is a cell formula string (e.g., '=SUM(A1:A5)') or null to leave blank. Must match the dimensions of the address range.
number_formatarrayoptional2D array of number format strings to apply. Each element is an Excel number format code (e.g., 'mm/dd/yyyy', '0.00', '@' for text). Must match the dimensions of the address range.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
microsoftexcel_update_table#Update the properties of an existing Excel table in a workbook stored in OneDrive. Supports renaming the table, toggling header and total rows, and changing the table style.7 params

Update the properties of an existing Excel table in a workbook stored in OneDrive. Supports renaming the table, toggling header and total rows, and changing the table style.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
table_idstringrequiredTable name or numeric ID to update. Example: 'Table1' or '1'.
namestringoptionalNew name for the table. Must be unique within the workbook. Example: 'SalesData'. Only alphanumeric characters and underscores; must not start with a number.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
show_headersbooleanoptionalWhether to show the header row of the table. Set to true to display column headers, false to hide them.
show_totalsbooleanoptionalWhether to show the totals row at the bottom of the table. Set to true to display the totals row, false to hide it.
stylestringoptionalTable style name to apply. Valid values follow the Excel table style naming convention, e.g., 'TableStyleLight1', 'TableStyleMedium2', 'TableStyleDark3'. See Excel table styles for available options.
microsoftexcel_update_worksheet#Update properties of an existing worksheet in an Excel workbook stored in OneDrive. You can rename the sheet, change its tab position, or change its visibility. At least one of name, position, or visibility must be provided.6 params

Update properties of an existing worksheet in an Excel workbook stored in OneDrive. You can rename the sheet, change its tab position, or change its visibility. At least one of name, position, or visibility must be provided.

NameTypeRequiredDescription
item_idstringrequiredOneDrive item ID of the Excel (.xlsx) file. Example: '01BYE5RZ6QN3ZWBTUFOFD3GSPGOHDJD36K'.
worksheet_idstringrequiredWorksheet name or GUID to update. Example: 'Sheet1' or '{00000000-0001-0000-0000-000000000000}'.
namestringoptionalNew name for the worksheet tab. Must be unique within the workbook and no longer than 31 characters. Example: 'Q2 Sales'.
positionintegeroptionalZero-based index position of the worksheet among other sheets. Example: 0 makes it the first sheet.
session_idstringoptionalOptional workbook session ID from createSession. When provided, sent as the workbook-session-id header. Example: 'cluster=SN2&session=...'.
visibilitystringoptionalVisibility of the worksheet. Valid values: 'Visible' (shown), 'Hidden' (hidden but can be unhidden by user), 'VeryHidden' (hidden and cannot be unhidden from the UI).
